XTZ XTZ-17021

The XTZ XTZ-17021 is a tractor produced by Xtz. It is equipped with a 435 ci 7.1 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: 16 forward and 8 reverse. Operating weight: 18700 lbs 8482 kg.

Overview

	Four-wheel Drive (4WD) tractor	Four-wheel Drive (4WD) tractor

Production
Manufacturer	XTZ
Four-wheel Drive (4WD) tractor
Built in Kharkiv, Ukraine

Variants
17021	Deutz engine
17221	YaMZ engine

XTZ XTZ-17021 Engine
Deutz 7.1L 6-cyl diesel
Engine details ...

XTZ XTZ-17021 Transmission
16-speed
Transmission details ...

XTZ XTZ-17021 Power
Engine	180 hp 134.2 kW

Mechanical
Four-wheel drive
Articulated power steering
Cab standard with air-conditioning.

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	18700 lbs 8482 kg
Front tire	23.1R26
Rear tire	23.1R26
Full dimensions and tires ...

Engine

Engine Detail — 435 ci / 7.1 L Diesel

Manufacturer	Deutz BF6M1013E
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled inline
Displacement	435 ci 7.1 L
Bore/Stroke	4.2x5.1 inches 107 x 130 mm
Power	180 hp 134.2 kW
Rated RPM	2100
Starter type	electric

Transmission

Transmission — 16 forward and 8 reverse

Gears	16 forward and 8 reverse
Clutch	dry disc

Dimensions

XTZ XTZ-17021 Tires
Ag front	23.1R26
Ag rear	23.1R26

Dimensions
Wheelbase	112.6 inches 286 cm
Length	252 inches 640 cm
Width	96.9 inches 246 cm
Height (exhaust)	136.2 inches 345 cm
Weight	18700 lbs 8482 kg
Ground clearance	17.7 inches 44 cm
Front tread	73.2 inches 185 cm
Rear tread	73.2 inches 185 cm

Photos

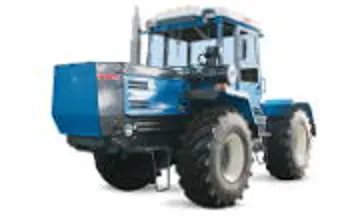

XTZ XTZ-17021 tractor photo
