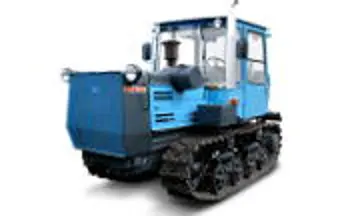

XTZ XTZ-150K-12
The XTZ XTZ-150K-12 is a tractor produced by Xtz. It is equipped with a 640.7 ci 10.5 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: 12 forward and 4 reverse. Operating weight: 17650 lbs 8006 kg.
Overview
![]() | Four-wheel Drive (4WD) tractor | Four-wheel Drive (4WD) tractor |
|---|
Production | |
|---|---|
Manufacturer | XTZ |
Four-wheel Drive (4WD) tractor | |
Built in Kharkiv, Ukraine | |
XTZ XTZ-150K-12 Engine | |
|---|---|
YaMZ 10.5L 8-cyl diesel | |
Fuel tank | 83.2 gal
314.9 L |
Engine details ... | |
XTZ XTZ-150K-12 Transmission | |
|---|---|
12-speed | |
Transmission details ... |
XTZ XTZ-150K-12 Power | |
|---|---|
Engine | 180 hp
134.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Final drives | planetary |
Articulated power steering | |
Pneumatic drum brakes | |
Cab standard, air-conditioning available. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 112.6 inches
286 cm |
Weight | 17650 lbs
8006 kg |
Front tire | 23.1R24 |
Rear tire | 23.1R24 |
Full dimensions and tires ... | |
Engine
Engine Detail — 640.7 ci / 10.5 L Diesel
Manufacturer | YaMZ 740.2-180 |
Fuel Type | Diesel |
Configuration | 8-cylinder, liquid-cooled V-8 |
Displacement | 640.7 ci
10.5 L |
Power | 180 hp
134.2 kW |
Rated RPM | 2200 |
Starter type | electric |
Transmission
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Clutch | dry disc |
Four gears in three ranges, plus reverse range. | |
Dimensions
XTZ XTZ-150K-12 Tires | |
|---|---|
Ag front | 23.1R24 |
Ag rear | 23.1R24 |
Dimensions | |
|---|---|
Wheelbase | 112.6 inches
286 cm |
Length | 241.3 inches
612 cm |
Width | 94.7 inches
240 cm |
Height (cab) | 125.8 inches
319 cm |
Weight | 17650 lbs
8006 kg |
Ground clearance | 15.8 inches
40 cm |
Front tread | 66.1 to 73.2 inches
167 to 185 cm |
Rear tread | 66.1 to 73.2 inches
167 to 185 cm |
Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Xtz XTZ-150K-12 based on its 180 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Xtz XTZ-150K-12.
Estimated Continuous Field Runtime: 8.9 hrs
Approximately 8.9 hours of continuous field operation at ~75% rated power on a full tank (83.2 gal / 314.9 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Xtz XTZ-150K-12 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Xtz XTZ-150K-12.
Converted Equivalents:
Direct Competitor Comparison
Compare XTZ XTZ-150K-12 against same-era industry alternatives in the same horsepower class.
XTZ XTZ-150K-12
International Harvester 1486
Massey Ferguson 6S.165
