XTZ XTZ-150K-09-25

The XTZ XTZ-150K-09-25 is a tractor produced by Xtz. It is equipped with a 680.4 ci 11.2 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: 12 forward and 4 reverse. Operating weight: 18520 lbs 8400 kg.

Overview

	Four-wheel Drive (4WD) tractor	Four-wheel Drive (4WD) tractor

Production
Manufacturer	XTZ
Four-wheel Drive (4WD) tractor
Built in Kharkiv, Ukraine

XTZ XTZ-150K-09-25 Engine
YaMZ 11.2L 6-cyl diesel
Fuel tank	113.6 gal 430.0 L
Engine details ...

XTZ XTZ-150K-09-25 Transmission
12-speed
Transmission details ...

XTZ XTZ-150K-09-25 Power
Engine	180 hp 134.2 kW

Mechanical
Four-wheel drive
Articulated power steering
Cab standard with air-conditioning.

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Wheelbase	112.6 inches 286 cm
Weight	18520 lbs 8400 kg
Front tire	23.1R24
Rear tire	23.1R24
Full dimensions and tires ...

Engine

Engine Detail — 680.4 ci / 11.2 L Diesel

Manufacturer	YaMZ 236
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled V-6
Displacement	680.4 ci 11.2 L
Bore/Stroke	5.12x5.51 inches 130 x 140 mm
Power	180 hp 134.2 kW
Rated RPM	2100
Starter type	electric

Transmission

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	dry disc
Four gears in three ranges, plus reverse range.

Dimensions

XTZ XTZ-150K-09-25 Tires
Ag front	23.1R24
Ag rear	23.1R24

Dimensions
Wheelbase	112.6 inches 286 cm
Length	241.3 inches 612 cm
Width	96.9 inches 246 cm
Height (cab)	125 inches 317 cm
Height (exhaust)	130.8 inches 332 cm
Weight	18520 lbs 8400 kg
Ground clearance	15.8 inches 40 cm
Front tread	66.1 to 73.2 inches 167 to 185 cm
Rear tread	66.1 to 73.2 inches 167 to 185 cm

Photos

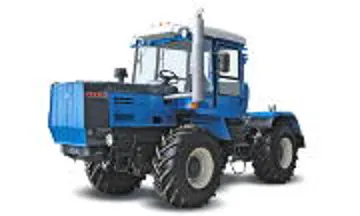

XTZ XTZ-150K-09-25 tractor photo
