XTZ XTZ-21041

The XTZ XTZ-21041 is a tractor produced by Xtz. It is equipped with a 435 ci 7.1 L engine. The listed engine power is Diesel (listed): 160 hp / 119.3 kW. Transmission: 40 forward and reverse. Operating weight: 19400 lbs 8799 kg.

Engine Power
Diesel (listed): 160 hp / 119.3 kW
Fuel & Capacities
97.7 gal 369.8 L
Transmission
40 forward and reverse
Operating Weight
19400 lbs 8799 kg

Overview

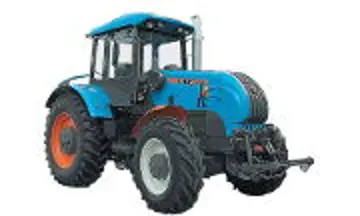

XTZ XTZ-21041 tractor photo
Row-Crop tractor
Row-Crop tractor
Production
Manufacturer
XTZ
Row-Crop tractor
Built in Kharkiv, Ukraine
XTZ XTZ-21041 Engine
Deutz 7.1L 6-cyl diesel
Fuel tank
97.7 gal 369.8 L
Engine details ...
XTZ XTZ-21041 Transmission
40-speed
Transmission details ...
XTZ XTZ-21041 Power
Engine
160 hp 119.3 kW
Mechanical
Four-wheel drive
Final drives
planetary
Power steering
Pneumatic drum brakes
Cab standard.
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Front PTO Type
750/1000
Dimensions & Tires
Wheelbase
113.8 inches 289 cm
Weight
19400 lbs 8799 kg
Front tire
16.9R30
Rear tire
20.8R42
Full dimensions and tires ...

Engine

Engine Detail — 435 ci / 7.1 L Diesel

Manufacturer
Deutz BF6M1013FC
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled inline
Displacement
435 ci 7.1 L
Bore/Stroke
4.252x5.512 inches 108 x 140 mm
Power
160 hp 119.3 kW
Rated RPM
2200
Starter type
electric

Transmission

Transmission — 40 forward and reverse

Gears
40 forward and reverse

Dimensions

XTZ XTZ-21041 Tires
Ag front
16.9R30
Ag rear
20.8R42
Dimensions
Wheelbase
113.8 inches 289 cm
Length
202.8 inches 515 cm
Width
98.4 inches 249 cm
Height (exhaust)
133.9 inches 340 cm
Weight
19400 lbs 8799 kg
Ground clearance
16.5 inches 41 cm

Photos

XTZ XTZ-21041

XTZ XTZ-21041

Recommended Implements & Sizing Guide

Engineering recommendations for Xtz XTZ-21041 based on its 160 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Xtz XTZ-21041.

Estimated Continuous Field Runtime: 11.7 hrs

Approximately 11.7 hours of continuous field operation at ~75% rated power on a full tank (97.7 gal / 369.8 L).

Estimated 75% Load Fuel Burn~8.3 gal/hr (31.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Xtz XTZ-21041 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Xtz XTZ-21041.

Converted Equivalents:

Horsepower (HP)160 hp
Kilowatts (kW)119.3 kW
Metric Horsepower (PS / CV)162.2 PS

Direct Competitor Comparison

Compare XTZ XTZ-21041 against same-era industry alternatives in the same horsepower class.

Current Model
Xtz

XTZ XTZ-21041

Engine Power:Diesel (listed): 160 hp / 119.3 kW
★ Baseline Reference
DeereMarket Competitor

Deere 4250

Engine Power:144
Production Years:1983 - 1988
International HarvesterMarket Competitor

International Harvester 1086

Engine Power:144.4
Production Years:1976 - 1981
Massey FergusonMarket Competitor

Massey Ferguson 3650

Engine Power:144.4
Production Years:1987 - 1990
CaseIHMarket Competitor

CaseIH 7110

Engine Power:144.4
Production Years:1987 - 1993
