XTZ XTZ-17221-09

The XTZ XTZ-17221-09 is a tractor produced by Xtz. It is equipped with a 680.4 ci 11.2 L engine. The listed engine power is Diesel (listed): 180 hp / 134.2 kW. Transmission: 16 forward and 8 reverse. Operating weight: 19000 lbs 8618 kg.

Engine Power
Diesel (listed): 180 hp / 134.2 kW
Fuel & Capacities
Diesel
Transmission
16 forward and 8 reverse
Operating Weight
19000 lbs 8618 kg

Overview

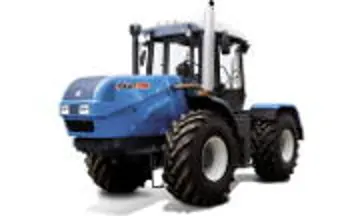

XTZ XTZ-17221-09 tractor photo
Four-wheel Drive (4WD) tractor
Four-wheel Drive (4WD) tractor
Production
Manufacturer
XTZ
Four-wheel Drive (4WD) tractor
Built in Kharkiv, Ukraine
XTZ XTZ-17221-09 Engine
YaMZ 11.2L 6-cyl diesel
Engine details ...
XTZ XTZ-17221-09 Transmission
16-speed
Transmission details ...
XTZ XTZ-17221-09 Power
Engine
180 hp 134.2 kW
Mechanical
Four-wheel drive
Articulated power steering
Cab standard with air-conditioning.
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
112.6 inches 286 cm
Weight
19000 lbs 8618 kg
Front tire
23.1R26
Rear tire
23.1R26
Full dimensions and tires ...

Engine

Engine Detail — 680.4 ci / 11.2 L Diesel

Manufacturer
YaMZ 236
Fuel Type
Diesel
Configuration
6-cylinder, liquid-cooled V-6
Displacement
680.4 ci 11.2 L
Bore/Stroke
5.12x5.51 inches 130 x 140 mm
Power
180 hp 134.2 kW
Rated RPM
2100
Starter type
electric

Transmission

Transmission — 16 forward and 8 reverse

Gears
16 forward and 8 reverse
Clutch
dry disc

Dimensions

XTZ XTZ-17221-09 Tires
Ag front
23.1R26
Ag rear
23.1R26
Dimensions
Wheelbase
112.6 inches 286 cm
Length
252 inches 640 cm
Width
96.9 inches 246 cm
Height (cab)
128 inches 325 cm
Weight
19000 lbs 8618 kg
Ground clearance
17.7 inches 44 cm
Front tread
73.2 inches 185 cm
Rear tread
73.2 inches 185 cm

Photos

XTZ XTZ-17221-09 tractor photo

XTZ XTZ-17221-09 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Xtz XTZ-17221-09 based on its 180 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
5 to 7 Bottom (18")5 - 7 铧 (45 cm)Commercial / Field ScaleLarge acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing
15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼Commercial / Field ScaleLarge commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep
90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机Commercial / Field ScaleDeep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage
15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙Commercial / Field ScaleWide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage
Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)Commercial / Field ScaleHigh-capacity commercial forage harvesting (1000 RPM PTO).
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Xtz XTZ-17221-09.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Xtz XTZ-17221-09 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Xtz XTZ-17221-09.

Converted Equivalents:

Horsepower (HP)180 hp
Kilowatts (kW)134.2 kW
Metric Horsepower (PS / CV)182.5 PS

Direct Competitor Comparison

Compare XTZ XTZ-17221-09 against same-era industry alternatives in the same horsepower class.

Current Model
Xtz

XTZ XTZ-17221-09

Engine Power:Diesel (listed): 180 hp / 134.2 kW
★ Baseline Reference
International HarvesterMarket Competitor

International Harvester 1486

Engine Power:162.2
Production Years:1976 - 1981
DeereMarket Competitor

Deere 6R 165

Engine Power:162.3
Production Years:2022 - 2026
Massey FergusonMarket Competitor

Massey Ferguson 6S.165

Engine Power:162.3
Production Years:2022 - 2026
FordMarket Competitor

Ford FW-25

Engine Power:163
Production Years:1986 - 1988
