Ford LGT-17
The Ford LGT-17 is a tractor produced by Ford Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The rated power output is 17 hp 12.7 kW. Transmission: Eaton 11. Operating weight: 605 to 673 pounds.
Engine Power
17 hp
12.7 kW
Fuel & Capacities
3.5 gal
13.2 L
Transmission
Eaton 11
Operating Weight
605 to 673 pounds
Ford Lawn Tractors Ford LGT-17 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1983 - 1986
Garden tractor |
|---|---|
1983 - 1986 | |
Garden tractor | |
Production | |
|---|---|
Manufacturer | Ford |
Garden tractor | |
Variants | |
|---|---|
LGT-17H | hydrostatic |
Ford LGT-17 Engine | |
|---|---|
17HP Kohler 691cc 2-cyl gasoline | |
Fuel tank | 3.5 gal
13.2 L |
Engine details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual pinion and sector |
Manual caliper brakes | |
Open operator station. | |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 49 inches
124 cm |
Weight | 605 to 673 pounds |
Front tire | 16-6.50x8 |
Rear tire | 23-9.50x12 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 691 cc / 42.18 ci Gasoline
Manufacturer | Kohler KT-17 |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft |
Displacement | 691 cc
42.18 ci |
Bore/Stroke | 3.12x2.75 inches
79 x 70 mm |
Power | 17 hp
12.7 kW |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |
Transmission
Transmission options | |
|---|---|
4-speed gear | |
hydrostatic |
Transmission — 4 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 4 forward and 1 reverse |
Oil capacity | 2 qts
1.9 L |
Oil type | EP 140 |
 | |
Transmission — Eaton 11
Transmission | Eaton 11 |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (2-range) |
Oil capacity | 6 qts
5.7 L |
Oil type | SAE 20 |
 | |
Dimensions
Ford LGT-17 Tires | |
|---|---|
Lawn/turf front | 16-6.50x8 |
Lawn/turf rear | 23-9.50x12 |
Dimensions | |
|---|---|
Wheelbase | 49 inches
124 cm |
Length | 73 inches
185 cm |
Width | 36.5 inches
92 cm |
Height (steering wheel) | 39.5 inches
100 cm |
Gear Weight | 605 lbs
274 kg |
Hydro Weight | 673 lbs
305 kg |
Clearance (front axle) | 10.6 inches
26 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

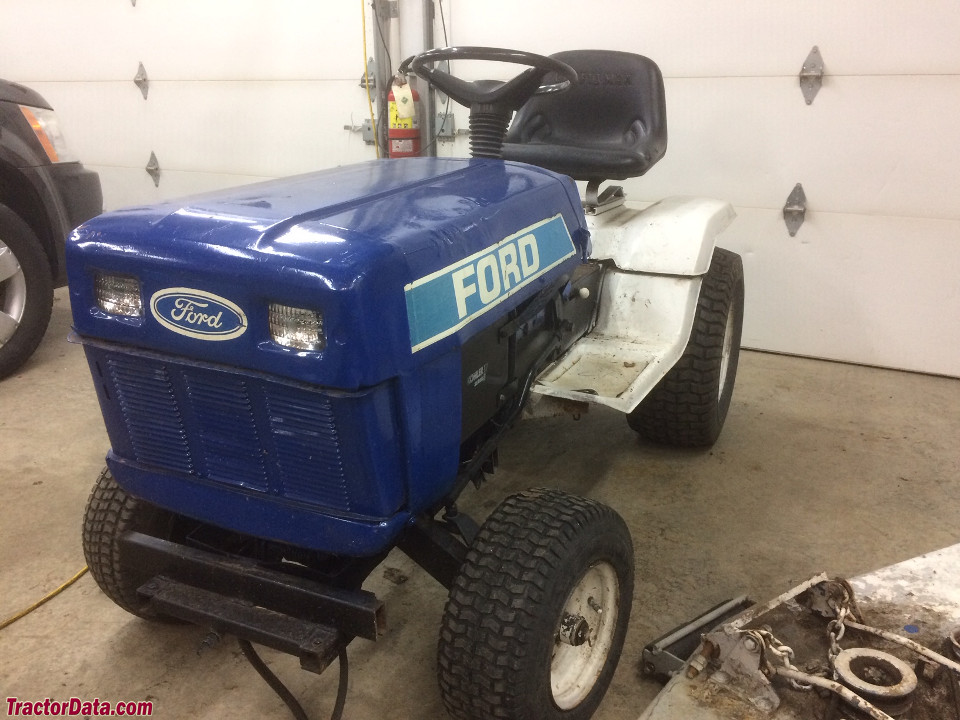

Ford LGT-17H

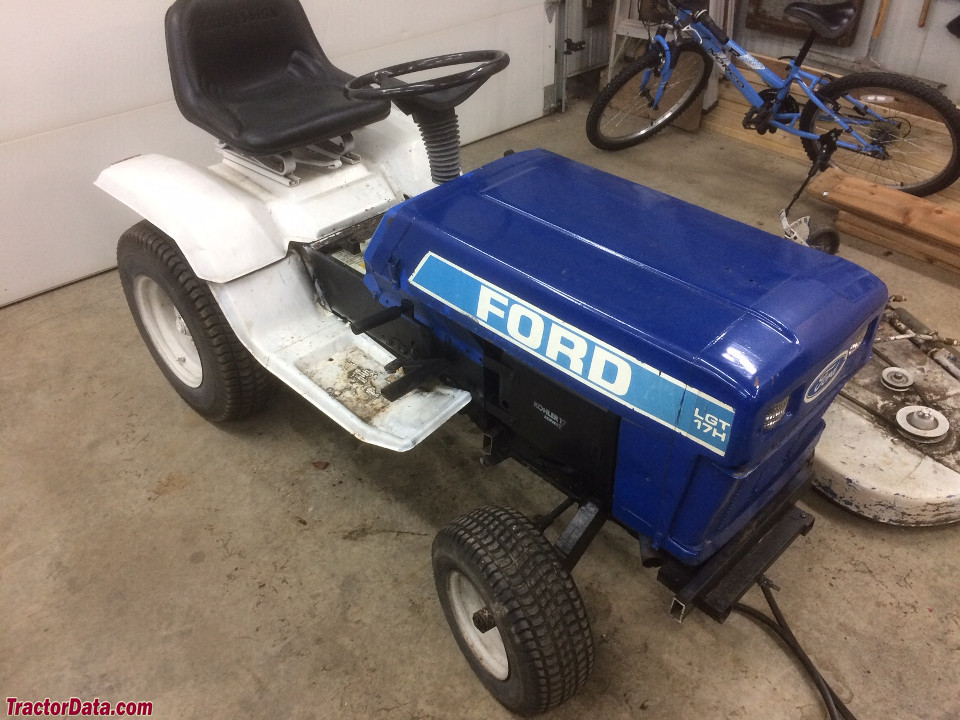

Ford LGT-17H

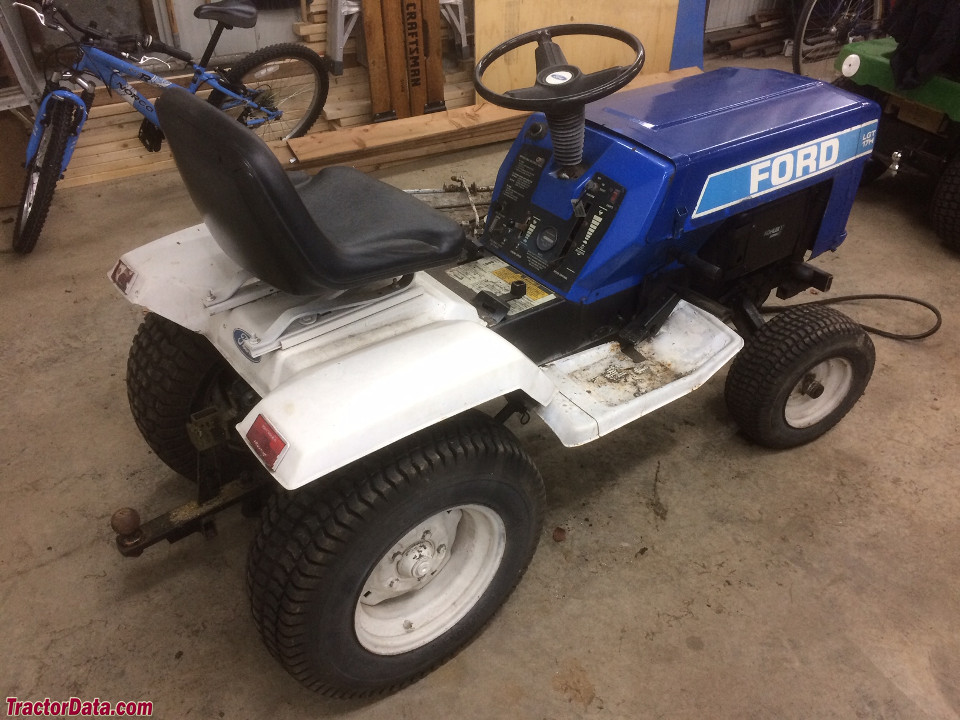

Ford LGT-17H
