Kubota F2680

The Kubota F2680 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1124 cc 68.6 ci engine. The listed engine power is Diesel (listed): 25.5 hp / 19.0 kW. Transmission: infinite forward and reverse. Operating weight: 1488 lbs 674 kg.

Engine Power
Diesel (listed): 25.5 hp / 19.0 kW
Fuel & Capacities
16.1 gal 60.9 L
Transmission
infinite forward and reverse
Operating Weight
1488 lbs 674 kg

Overview

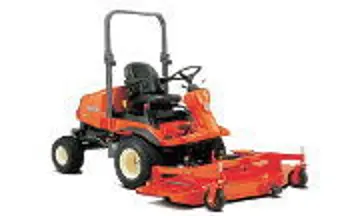

Kubota F2680 tractor photo
2008 - 2013 F80 SeriesFront-mount mower F80 Series Front-mount mower
Production
Manufacturer
Kubota
Front-mount mower
Kubota F2680 Engine
25.5HP Kubota 1124cc 3-cyl diesel
Fuel tank
16.1 gal 60.9 L
Engine details ...
Kubota F2680 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Differential lock
standard
Power steering
Wet disc brakes
Two-post foldable ROPS.
Power Take-off (PTO)
Front PTO
independent
Clutch
hydraulic wet disc
Front PTO Type
2545
Dimensions & Tires
Wheelbase
52 inches 132 cm
Weight
1488 lbs 674 kg
Front tire
23x10.5-12
Rear tire
16x6.5-8
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
40
Charging volts
12
Battery volts
12

Engine

Engine Detail — 1124 cc / 68.6 ci Diesel

Manufacturer
Kubota D1105
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
1124 cc 68.6 ci
Bore/Stroke
3.1x3.1 inches 79 x 79 mm
Power
25.5 hp 19.0 kW
Air cleaner
dual elment dry
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
F2680  hydrostatic speeds

Dimensions

Kubota F2680 Tires
Lawn/turf front
23x10.5-12
Lawn/turf rear
16x6.5-8
Dimensions
Wheelbase
52 inches 132 cm
Length
94.8 inches 240 cm
Width
56.4 inches 143 cm
Height (ROPS)
79.4 inches 201 cm
Weight
1488 lbs 674 kg
Ground clearance
7.4 inches 18 cm
Front tread
38.4 inches 97 cm
Rear tread
34.2 inches 86 cm

Attachments

Attachment overview
60" front-mount mower deck
72" front-mount mower deck

Photos

Kubota F2680 tractor photo

Kubota F2680 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota F2680 based on its 25.5 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota F2680.

Estimated Continuous Field Runtime: 12.1 hrs

Approximately 12.1 hours of continuous field operation at ~75% rated power on a full tank (16.1 gal / 60.9 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota F2680 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota F2680.

Converted Equivalents:

Horsepower (HP)25.5 hp
Kilowatts (kW)19 kW
Metric Horsepower (PS / CV)25.9 PS

Direct Competitor Comparison

Compare Kubota F2680 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota F2680

Engine Power:Diesel (listed): 25.5 hp / 19.0 kW
★ Baseline Reference
CaseIHMarket Competitor

CaseIH 1130

Engine Power:23
Production Years:1991 - 1991
FordMarket Competitor

Ford 1520

Engine Power:23
Production Years:1987 - 1995
New HollandMarket Competitor

New Holland 1520

Engine Power:23
Production Years:1996 - 1998
DeereMarket Competitor

Deere 2210

Engine Power:23
Production Years:2003 - 2006
