Kubota GR2110

The Kubota GR2110 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 778 cc 47.5 ci engine. The listed engine power is Diesel (gross): 21 hp / 15.7 kW. Transmission: infinite forward and reverse. Operating weight: 948 lbs (with mower) 430 kg.

Engine Power
Diesel (gross): 21 hp / 15.7 kW
Fuel & Capacities
4.8 gal 18.2 L
Transmission
infinite forward and reverse
Operating Weight
948 lbs (with mower) 430 kg

Overview

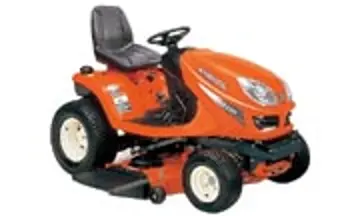

Kubota GR2110 tractor photo
2008 - 2009 GR SeriesGarden tractor GR Series Garden tractor
Production
Manufacturer
Kubota
Garden tractor
Original price was $8,878 in 2011
Kubota GR2110 Engine
21HP Kubota 778cc 3-cyl diesel
Fuel tank
4.8 gal 18.2 L
Engine details ...
Kubota GR2110 Transmission
hydrostatic
Transmission details ...
Mechanical
Four-wheel drive
Steering
Glide Steer, hydrostatic power
Internal expanding brake brakes
Open operator station with adjustable seat and cup holder.
Dimensions & Tires
Wheelbase
50.4 inches 128 cm
Weight
948 lbs 430 kg
Front tire
16x7.5-8
Rear tire
23x10.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
14.5
Battery volts
12
Battery AH
75

Engine

Engine Detail — 778 cc / 47.5 ci Diesel

Manufacturer
Kubota D782
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
778 cc 47.5 ci
Power (gross)
21 hp 15.7 kW
Rated RPM
3200
Starter
electric
Starter volts
12
Oil capacity
3 qts 2.8 L

Transmission

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
Oil capacity
2.6 qts 2.5 L
Treadle-pedal foot control with cruise control.
GR2110  hydrostatic speeds

Dimensions

Kubota GR2110 Tires
Ag front
16x7.50-8
Ag rear
23x10.5-12
Lawn/turf front
16x7.5-8
Lawn/turf rear
23x10.50-12
Dimensions
Wheelbase
50.4 inches 128 cm
Length
77.1 inches 195 cm
Width
66.3 inches 168 cm
Height
48.4 inches 122 cm
Weight
948 lbs (with mower) 430 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

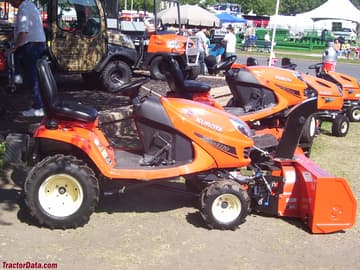

Right-side profile of GR2110 with snow blower

Right-side profile of GR2110 with snow blower

Left-side profile of the Kubota GR2110

Left-side profile of the Kubota GR2110

Kubota GR2110 operator station and controls.

Kubota GR2110 operator station and controls.

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota GR2110 based on its 21 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota GR2110.

Estimated Continuous Field Runtime: 4.4 hrs

Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (4.8 gal / 18.2 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota GR2110 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota GR2110.

Converted Equivalents:

Horsepower (HP)21 hp
Kilowatts (kW)15.7 kW
Metric Horsepower (PS / CV)21.3 PS

Direct Competitor Comparison

Compare Kubota GR2110 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota GR2110

Engine Power:Diesel (gross): 21 hp / 15.7 kW
★ Baseline Reference
CaseIHMarket Competitor

CaseIH 1120

Engine Power:19
Production Years:1991 - 1991
FordMarket Competitor

Ford 1310

Engine Power:19
Production Years:1983 - 1986
KubotaMarket Competitor

Kubota B1400

Engine Power:19
Production Years:1979 - 1982
International HarvesterMarket Competitor

International Harvester D-219

Engine Power:19
Production Years:1962 - 1966
