Kubota G2000

The Kubota G2000 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 740 cc 45.16 ci engine. The listed engine power is Gasoline (gross): 21 hp / 15.7 kW. Transmission: infinite forward and reverse. Operating weight: 706 to 750 pounds.

Overview

	1989 - 1997 G SeriesGarden tractor G Series Garden tractor

Production
Manufacturer	Kubota
Garden tractor

Kubota G2000 Engine
21HP Kubota 740cc 3-cyl gasoline
Fuel tank	5 gal 18.9 L
Engine details ...

Kubota G2000 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Internal expanding shoe brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO Type	2000

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	706 to 750 pounds
Front tire	16x6.5-8.00
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	12.5
Battery volts	12
Battery AH	45

References
Product Catalog published in 1990, by Kubota

Engine

Engine Detail — 740 cc / 45.16 ci Gasoline

Manufacturer	Kubota WG750-G
Fuel Type	Gasoline
Configuration	3-cylinder, liquid-cooled
Displacement	740 cc 45.16 ci
Bore/Stroke	2.68x2.68 inches 68 x 68 mm
Power (gross)	21 hp 15.7 kW
Rated RPM	3600
Firing order	1-2-3
Starter volts	12

Transmission

Transmission — infinite forward and reverse shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Kubota G2000 Tires
Lawn/turf front	16x6.5-8.00
Lawn/turf rear	23x10.5-12
	23x8.5-12

Dimensions
Wheelbase	50 inches 127 cm
Length	73.4 inches 186 cm
Width	40.7 inches 103 cm
Height	45.7 inches 116 cm
G2000 Weight	706 lbs 320 kg
G2000S Weight	750 lbs 340 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

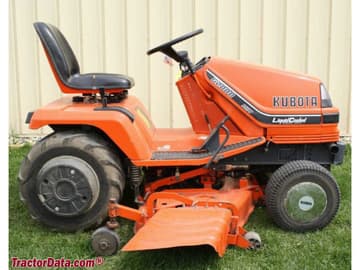

Kubota G2000 garden tractor with mower deck.

Kubota G2000 with mower deck. Sims cab, and material collection system.
