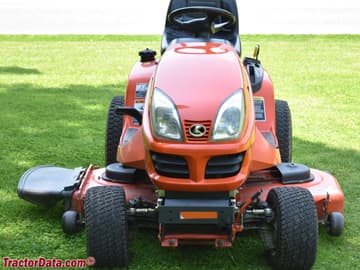

Kubota GR2100
The Kubota GR2100 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 781 cc 47.7 ci engine. The listed engine power is Diesel (listed): 21 hp / 15.7 kW. Transmission: infinite forward and reverse. Drive type: shaft. Operating weight: 948 lbs 430 kg.
Overview
![]() | 2005 - 2007
GR SeriesGarden tractor
GR Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Garden tractor | |
Kubota GR2100 Engine | |
|---|---|
21HP Kubtoa 781cc diesel | |
Fuel tank | 4.8 gal
18.2 L |
Engine details ... | |
Kubota GR2100 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 50.4 inches
128 cm |
Weight | 948 lbs
430 kg |
Front tire | 16x6.5-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 781 cc / 47.7 ci Diesel
Manufacturer | Kubtoa |
Fuel Type | Diesel |
Configuration | liquid-cooled |
Displacement | 781 cc
47.7 ci |
Power | 21 hp
15.7 kW |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
![]() | |
Dimensions
Kubota GR2100 Tires | |
|---|---|
Lawn/turf front | 16x6.5-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 50.4 inches
128 cm |
Length | 77.2 inches
196 cm |
Width | 66.3 inches
168 cm |
Height | 48.4 inches
122 cm |
Weight | 948 lbs
430 kg |
Attachments
Attachment overview | |
|---|---|
54" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
54" Mower deck | |
|---|---|
Type | mid-mount Kubota 1372 |
3-blade with hydraulic lift | |
Cutting width | 54 inches
137 cm |
Drive | shaft |
Cut height | 1 to 4 inch
2 to 10 cm |

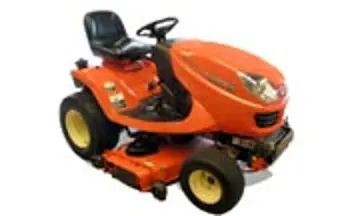

Photos
Recommended Implements & Sizing Guide
Engineering recommendations for Kubota Lawn Tractors Kubota GR2100 based on its 21 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota GR2100.
Estimated Continuous Field Runtime: 4.4 hrs
Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (4.8 gal / 18.2 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Kubota Lawn Tractors Kubota GR2100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota GR2100.
Converted Equivalents:
Direct Competitor Comparison
Compare Kubota GR2100 against same-era industry alternatives in the same horsepower class.
Kubota GR2100
International Harvester D-219
