Kubota G2160

The Kubota G2160 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 781 cc 47.7 ci engine. The listed engine power is Diesel (gross): 21 hp / 15.7 kW. Transmission: infinite forward and reverse. Operating weight: 860 lbs 390 kg.

Engine Power
Diesel (gross): 21 hp / 15.7 kW
Fuel & Capacities
5.8 gal 22.0 L
Transmission
infinite forward and reverse
Operating Weight
860 lbs 390 kg

Overview

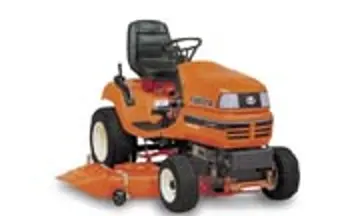

Kubota G2160 tractor photo
2001 - 2008 G SeriesGarden tractor G Series Garden tractor
Production
Manufacturer
Kubota
Garden tractor
Variants
G1260-R48S
integral hydraulic rear grass collection
Kubota G2160 Engine
21HP Kubota 781cc 3-cyl diesel
Fuel tank
5.8 gal 22.0 L
Engine details ...
Kubota G2160 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
electronic power
Drum brakes
Open operator station.
Tractor hitch
Rear Type
0 (optional)
Dimensions & Tires
Wheelbase
50.8 inches 129 cm
Weight
860 lbs 390 kg
Front tire
16x6.50-8
Rear tire
23x10.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery CCA
450
Battery volts
12

Engine

Engine Detail — 781 cc / 47.7 ci Diesel

Manufacturer
Kubota D782
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
781 cc 47.7 ci
Power (gross)
21 hp 15.7 kW
Starter volts
12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
G2160  hydrostatic speeds

Dimensions

Kubota G2160 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x10.50-12
Dimensions
Wheelbase
50.8 inches 129 cm
Length
74.2 inches 188 cm
Width
42.3 inches 107 cm
Height
50.4 inches 128 cm
Weight
860 lbs 390 kg

Attachments

Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

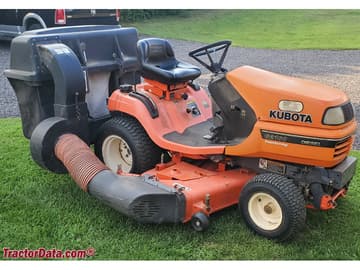

Kubota G2160 garden tractor with material collection system.

Kubota G2160 garden tractor with material collection system.

Kubota G2160 garden tractor.

Kubota G2160 garden tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota G2160 based on its 21 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota G2160.

Estimated Continuous Field Runtime: 5.3 hrs

Approximately 5.3 hours of continuous field operation at ~75% rated power on a full tank (5.8 gal / 22 L).

Estimated 75% Load Fuel Burn~1.1 gal/hr (4.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota G2160 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota G2160.

Converted Equivalents:

Horsepower (HP)21 hp
Kilowatts (kW)15.7 kW
Metric Horsepower (PS / CV)21.3 PS

Direct Competitor Comparison

Compare Kubota G2160 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota G2160

Engine Power:Diesel (gross): 21 hp / 15.7 kW
★ Baseline Reference
CaseIHMarket Competitor

CaseIH 1120

Engine Power:19
Production Years:1991 - 1991
FordMarket Competitor

Ford 1310

Engine Power:19
Production Years:1983 - 1986
KubotaMarket Competitor

Kubota B1400

Engine Power:19
Production Years:1979 - 1982
International HarvesterMarket Competitor

International Harvester D-219

Engine Power:19
Production Years:1962 - 1966
