Kubota F2690

The Kubota F2690 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 1124 cc 68.6 ci engine. The listed engine power is Diesel (listed): 25.5 hp / 19.0 kW. Transmission: infinite forward and reverse. Drive type: 4x2 2WD. Operating weight: 1594 to 1606 pounds.

Overview

	2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower

2014 -
F90 Series
Front-mount mower

Production
Manufacturer	Kubota
Front-mount mower

Variants
F2690E	2WD

Kubota F2690 Engine
25.5HP Kubota 1124cc 3-cyl diesel
Fuel tank	16.1 gal 60.9 L
Engine details ...

Kubota F2690 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	4x2 2WD
	4x4 4WD
Differential lock	standard
Power steering
Wet disc brakes
Two-post foldable ROPS.

Power Take-off (PTO)
Front PTO	independent
Clutch	hydraulic wet disc
Front PTO Type	2545
Engine RPM	$20,315@2015@@@@60-inch 2WD

Dimensions & Tires
Wheelbase	51.2 inches 130 cm
Weight	1594 to 1606 pounds
Front tire	23x10.5-12
Rear tire	16x6.5-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Charging volts	12
Battery volts	12

Engine

	2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower

2014 -
F90 Series
Front-mount mower

Engine Detail — 1124 cc / 68.6 ci Diesel

Manufacturer	Kubota D1105
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	1124 cc 68.6 ci
Bore/Stroke	3.1x3.1 inches 79 x 79 mm
Emissions	Tier IV
Power	25.5 hp 19.0 kW
Air cleaner	dual elment dry
Starter	electric
Starter volts	12

Transmission

	2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower

2014 -
F90 Series
Front-mount mower

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

	2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower

2014 -
F90 Series
Front-mount mower

Kubota F2690 Tires
2WD Lawn/turf front	23x10.5-12
4WD Lawn/turf front	24x12-12
2WD Lawn/turf rear	16x6.5-8
4WD Lawn/turf rear	18x9.5-8

Dimensions
Wheelbase	51.2 inches 130 cm
Length	96.5 inches 245 cm
Width	77.8 inches 197 cm
2WD Height (ROPS)	77.8 inches 197 cm
4WD Height (ROPS)	78.1 inches 198 cm
2WD Weight	1594 lbs 723 kg
4WD Weight	1606 lbs 728 kg
2WD Ground clearance	6.9 inches 17 cm
4WD Ground clearance	7.3 inches 18 cm
2WD Front tread	38.4 inches 97 cm
4WD Front tread	41.2 inches 104 cm
2WD Rear tread	34.4 inches 87 cm
4WD Rear tread	39.3 inches 99 cm

Attachments

	2014 - F90 SeriesFront-mount mower
2014 -
F90 Series
Front-mount mower

2014 -
F90 Series
Front-mount mower

Attachment overview
60" front-mount mower deck
72" front-mount mower deck

Photos

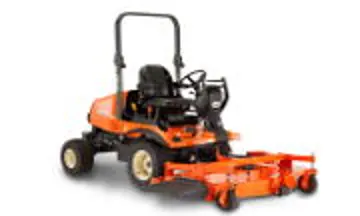

Kubota F2690 tractor photo
