Kubota T1870
The Kubota T1870 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 624 cc 38.1 ci engine. The listed engine power is Gasoline (listed): 19 hp / 14.2 kW; Gasoline (listed): 19 hp / 14.2 kW. Transmission: infinite forward and reverse. Operating weight: 617 lbs 279 kg.
Engine Power
Gasoline (listed): 19 hp / 14.2 kW; Gasoline (listed): 19 hp / 14.2 kW
Fuel & Capacities
Gasoline
Transmission
infinite forward and reverse
Operating Weight
617 lbs
279 kg
Overview
 | 2002 - 2007
T SeriesLawn tractor
T Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Kubota |
Lawn tractor | |
Kubota T1870 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual, sector and pinion |
Disc brakes | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Wheelbase | 47 inches
119 cm |
Weight | 617 lbs
279 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x10.00-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine options | |
|---|---|
19HP Kawasaki 493cc 2-cyl gasoline | |
19HP Kohler 624cc 2-cyl gasoline |
Engine Detail — 493 cc / 30.1 ci Gasoline
Manufacturer | Kawasaki FH531V |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
the Kawasaki engine was used in 2002 and 2003 on the T1870. | |
Displacement | 493 cc
30.1 ci |
Bore/Stroke | 2.68x2.68 inches
68 x 68 mm |
Power | 19 hp
14.2 kW |
Starter volts | 12 |
Engine Detail — 624 cc / 38.1 ci Gasoline
Manufacturer | Kohler CV19S |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled vertical-shaft V-Twin |
The Kohler engine was used in the T1870 beginning with the 2004 model year. | |
Displacement | 624 cc
38.1 ci |
Bore/Stroke | 3.03x2.64 inches
77 x 67 mm |
Power | 19 hp
14.2 kW |
Transmission
Transmission — infinite forward and reverse hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Kubota T1870 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x10.00-8 |
Dimensions | |
|---|---|
Wheelbase | 47 inches
119 cm |
Length | 68.8 inches
174 cm |
Width | 36.75 inches
93 cm |
Height | 44.1 inches
112 cm |
Weight | 617 lbs
279 kg |
Attachments
Attachment overview | |
|---|---|
48" mid-mount mower deck | |
Snowblower | |
Blade |
48" Mower deck | |
|---|---|
Type | mid-mount Kubota RCK48LT17A |
Cutting width | 48 inches
121 cm |
Photos

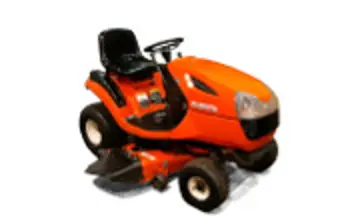

Kubota T1870
Kubota T1870
Kubota T1870
Kubota T1870 operator station and controls.
