Kubota Z724X

The Kubota Z724X is a tractor produced by Kubota Lawn Tractors. It is equipped with a 721 cc 44 ci engine. The listed engine power is Gasoline (gross): 23.5 hp / 17.5 kW. Transmission: Parker Torqpact GT14. Operating weight: 1163 lbs (48-inch) 527 kg.

Engine Power
Gasoline (gross): 23.5 hp / 17.5 kW
Fuel & Capacities
11.6 gal 43.9 L
Transmission
Parker Torqpact GT14
Operating Weight
1163 lbs (48-inch) 527 kg

Overview

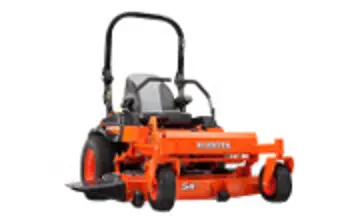

Kubota Z724X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Original price was $9,499 in 2021
Kubota Z724X Engine
23.5HP Kawasaki 721cc 2-cyl gasoline
Fuel tank
11.6 gal 43.9 L
Engine details ...
Kubota Z724X Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Drum discs brakes
Two-post foldable ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric dry disc
Dimensions & Tires
Wheelbase
50.9 inches 129 cm
Weight
1163 to 1179 pounds
Front tire
13x5.0-6
Rear tire
24x9.5-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery CCA
300
Battery volts
12
References
Z724X references literature
Z700 Series published in 2014, by Kubota
Z700 Series published in 2018, by Kubota

Engine

Kubota Z724X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower

Engine Detail — 721 cc / 44 ci Gasoline

Manufacturer
Kawasaki FX730V
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
721 cc 44 ci
Bore/Stroke
3.07x2.99 inches 78 x 76 mm
Power (gross)
23.5 hp 17.5 kW
Fuel system
carburetor
Rated RPM
3600
Starter
electric
Starter volts
12
Kubota Z724X Engine

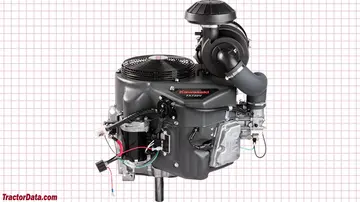

Kubota Z724X engine image

Transmission

Kubota Z724X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower

Transmission — Parker Torqpact GT14

Transmission
Parker Torqpact GT14
Type
hydrostatic
Gears
infinite forward and reverse
Z724X Torqpact GT14 hydrostatic speeds

Dimensions

Kubota Z724X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower
Kubota Z724X Tires
Lawn/turf front
13x5.0-6
Lawn/turf rear
24x9.5-12
Dimensions
Wheelbase
50.9 inches 129 cm
Length
83.9 inches 213 cm
Width
50.4 inches 128 cm
Height (ROPS)
69.9 inches 177 cm
Height (Folded ROPS)
48.3 inches 122 cm
Weight
1163 lbs (48-inch) 527 kg
1179 lbs (54-inch) 534 kg
Front tread
37.6 inches 95 cm
Rear tread
40.2 inches 102 cm

Attachments

Kubota Z724X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower
Attachment overview
48" mid-mount mower deck
54" mid-mount mower deck

Photos

Kubota Z724X tractor photo

Kubota Z724X tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota Z724X based on its 23.5 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z724X.

Estimated Continuous Field Runtime: 9.5 hrs

Approximately 9.5 hours of continuous field operation at ~75% rated power on a full tank (11.6 gal / 43.9 L).

Estimated 75% Load Fuel Burn~1.2 gal/hr (4.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota Z724X Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z724X.

Converted Equivalents:

Horsepower (HP)23.5 hp
Kilowatts (kW)17.5 kW
Metric Horsepower (PS / CV)23.8 PS

Direct Competitor Comparison

Compare Kubota Z724X against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota Z724X

Engine Power:Gasoline (gross): 23.5 hp / 17.5 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota B1241

Engine Power:21.5
Production Years:2018 - 2026
CaptainMarket Competitor

Captain 223

Engine Power:21.2
Production Years:2021 - 2026
YanmarMarket Competitor

Yanmar FV-220

Engine Power:21.2
Production Years:1992 - 1998
IsekiMarket Competitor

Iseki TH215

Engine Power:21.2
Production Years:2010 - 2016
