Kubota Z726X

The Kubota Z726X is a tractor produced by Kubota Lawn Tractors. It is equipped with a 852 cc 52 ci engine. The listed engine power is Gasoline (gross): 25.5 hp / 19.0 kW. Transmission: Parker Torqpact GT14. Operating weight: 1232 lbs 558 kg.

Engine Power
Gasoline (gross): 25.5 hp / 19.0 kW
Fuel & Capacities
11.6 gal 43.9 L
Transmission
Parker Torqpact GT14
Operating Weight
1232 lbs 558 kg

Overview

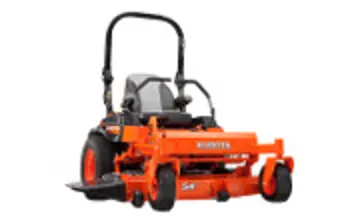

Kubota Z726X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Original price was $9,999 in 2021
Kubota Z726X Engine
25.5HP Kawasaki 852cc 2-cyl gasoline
Fuel tank
11.6 gal 43.9 L
Engine details ...
Kubota Z726X Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Drum discs brakes
Two-post foldable ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric dry disc
Dimensions & Tires
Wheelbase
50.9 inches 129 cm
Weight
1232 lbs 558 kg
Front tire
13x6.5-6
Rear tire
24x12-12
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery CCA
300
Battery volts
12
References
Z726X references literature
Z700 Series published in 2014, by Kubota
Z700 Series published in 2018, by Kubota

Engine

Kubota Z726X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower

Engine Detail — 852 cc / 52 ci Gasoline

Manufacturer
Kawasaki FX801V
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
852 cc 52 ci
Bore/Stroke
3.33x2.99 inches 85 x 76 mm
Power (gross)
25.5 hp 19.0 kW
Fuel system
carburetor
Rated RPM
3600
Starter
electric
Starter volts
12

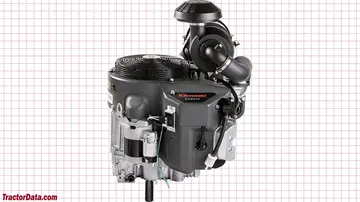

Kubota Z726X Engine
Kubota Z726X engine image

Transmission

Kubota Z726X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower

Transmission — Parker Torqpact GT14

Transmission
Parker Torqpact GT14
Type
hydrostatic
Gears
infinite forward and reverse
Z726X Torqpact GT14 hydrostatic speeds

Dimensions

Kubota Z726X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower
Kubota Z726X Tires
Lawn/turf front
13x6.5-6
Lawn/turf rear
24x12-12
Dimensions
Wheelbase
50.9 inches 129 cm
Length
83.9 inches 213 cm
Width
54.7 inches 138 cm
Height (ROPS)
69.9 inches 177 cm
Height (Folded ROPS)
48.3 inches 122 cm
Weight
1232 lbs 558 kg
Front tread
37.6 inches 95 cm
Rear tread
42.6 inches 108 cm

Attachments

Kubota Z726X tractor photo
2015 - Z700 SeriesZero-turn mower
2015 -
Z700 Series
Zero-turn mower
2015 -
Z700 Series
Zero-turn mower
60" Mower deck
Type
mid-mount Kubota RCK60P-752Z
3-blade
Cutting width
60 inches 152 cm
Overall width
73.8 inches 187 cm
Cut height
1 to 5 inch 2 to 12 cm

Photos

Kubota Z726X tractor photo

Kubota Z726X tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota Z726X based on its 25.5 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z726X.

Estimated Continuous Field Runtime: 8.7 hrs

Approximately 8.7 hours of continuous field operation at ~75% rated power on a full tank (11.6 gal / 43.9 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota Z726X Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z726X.

Converted Equivalents:

Horsepower (HP)25.5 hp
Kilowatts (kW)19 kW
Metric Horsepower (PS / CV)25.9 PS

Direct Competitor Comparison

Compare Kubota Z726X against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota Z726X

Engine Power:Gasoline (gross): 25.5 hp / 19.0 kW
★ Baseline Reference
CaseIHMarket Competitor

CaseIH 1130

Engine Power:23
Production Years:1991 - 1991
FordMarket Competitor

Ford 1520

Engine Power:23
Production Years:1987 - 1995
New HollandMarket Competitor

New Holland 1520

Engine Power:23
Production Years:1996 - 1998
DeereMarket Competitor

Deere 2210

Engine Power:23
Production Years:2003 - 2006
