Kubota Z751

The Kubota Z751 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The listed engine power is Gasoline (gross): 25.5 hp / 19.0 kW. Transmission: Parker HTG14. Operating weight: 1215 lbs 551 kg.

Engine Power
Gasoline (gross): 25.5 hp / 19.0 kW
Fuel & Capacities
11.6 gal 43.9 L
Transmission
Parker HTG14
Operating Weight
1215 lbs 551 kg

Overview

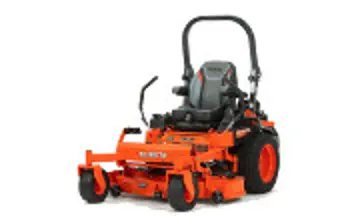

Kubota Z751 tractor photo
2018 - Z700 SeriesZero-turn mower
2018 -
Z700 Series
Zero-turn mower
2018 -
Z700 Series
Zero-turn mower
Production
Manufacturer
Kubota
Zero-turn mower
Original price was $9,999 in 2021
Kubota Z751 Engine
25.5HP Kawasaki 726cc 2-cyl gasoline
Fuel tank
11.6 gal 43.9 L
Engine details ...
Kubota Z751 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Power steering
Drum brakes
Two-post folding ROPS.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electro-magnetic
Dimensions & Tires
Wheelbase
50.9 inches 129 cm
Weight
1215 lbs 551 kg
Front tire
13x6.5-6
Rear tire
24x9.5-14
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
15
Battery CCA
300
Battery volts
12
References
Z751 references literature
Z700 Series published in 2018, by Kubota

Engine

Kubota Z751 tractor photo
2018 - Z700 SeriesZero-turn mower
2018 -
Z700 Series
Zero-turn mower
2018 -
Z700 Series
Zero-turn mower

Engine Detail — 726 cc / 44.3 ci Gasoline

Manufacturer
Kawasaki FX730V-EFI
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
726 cc 44.3 ci
Bore/Stroke
3.07x2.99 inches 78 x 76 mm
Power (gross)
25.5 hp 19.0 kW
Fuel system
electronic fuel injection
Starter
electric
Starter volts
12
Kubota Z751 Engine

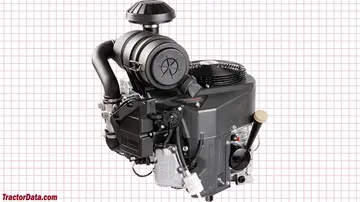

Kubota Z751 engine image

Transmission

Kubota Z751 tractor photo
2018 - Z700 SeriesZero-turn mower
2018 -
Z700 Series
Zero-turn mower
2018 -
Z700 Series
Zero-turn mower

Transmission — Parker HTG14

Transmission
Parker HTG14
Type
hydrostatic
Gears
infinite forward and reverse
Z751 HTG14 hydrostatic speeds
Kubota Z751 Transmission

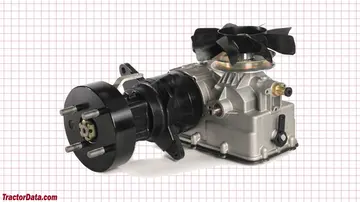

Kubota Z751 transmission image

Dimensions

Kubota Z751 tractor photo
2018 - Z700 SeriesZero-turn mower
2018 -
Z700 Series
Zero-turn mower
2018 -
Z700 Series
Zero-turn mower
Kubota Z751 Tires
Lawn/turf front
13x6.5-6
Lawn/turf rear
24x9.5-14
Dimensions
Wheelbase
50.9 inches 129 cm
Length
83.9 inches 213 cm
Width
50.4 inches 128 cm
Height (ROPS)
70.1 inches 178 cm
Height (Folded ROPS)
48.6 inches 123 cm
Weight
1215 lbs 551 kg
Front tread
37.6 inches 95 cm
Rear tread
40.2 inches 102 cm

Attachments

Kubota Z751 tractor photo
2018 - Z700 SeriesZero-turn mower
2018 -
Z700 Series
Zero-turn mower
2018 -
Z700 Series
Zero-turn mower
48" Mower deck
Type
mid-mount Kubota RCK48R-751Z
3-blade
Cutting width
48 inches 121 cm
Overall width
61.3 inches 155 cm
Cut height
1.0 to 5.5 inch 2 to 13 cm

Photos

Kubota Z751 tractor photo

Kubota Z751 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota Z751 based on its 25.5 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota Z751.

Estimated Continuous Field Runtime: 8.7 hrs

Approximately 8.7 hours of continuous field operation at ~75% rated power on a full tank (11.6 gal / 43.9 L).

Estimated 75% Load Fuel Burn~1.3 gal/hr (5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota Z751 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota Z751.

Converted Equivalents:

Horsepower (HP)25.5 hp
Kilowatts (kW)19 kW
Metric Horsepower (PS / CV)25.9 PS

Direct Competitor Comparison

Compare Kubota Z751 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota Z751

Engine Power:Gasoline (gross): 25.5 hp / 19.0 kW
★ Baseline Reference
CaseIHMarket Competitor

CaseIH 1130

Engine Power:23
Production Years:1991 - 1991
FordMarket Competitor

Ford 1520

Engine Power:23
Production Years:1987 - 1995
New HollandMarket Competitor

New Holland 1520

Engine Power:23
Production Years:1996 - 1998
DeereMarket Competitor

Deere 2210

Engine Power:23
Production Years:2003 - 2006
