Simplicity Broadmoor 18H

The Simplicity Broadmoor 18H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 569 cc 34.75 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Tuff Torq K61. Operating weight: 424 lbs*Weight of tractor only. 192 kg.

Overview

	1998 - 2004 Model year 1998-20022003-2004 Broadmoor SeriesLawn tractor Broadmoor Series Lawn tractor

Production
Manufacturer	Simplicity
Lawn tractor

Variants
2618H	similar Massey Ferguson model
1618H	similar AGCO model

Simplicity Broadmoor 18H Engine
18HP Vanguard 569cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Simplicity Broadmoor 18H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	50.75 inches 128 cm
Weight	424 lbs 192 kg
Front tire	15x6.0-6
Rear tire	20x8.0-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
The way to a beautiful lawn. published in 2000, by Simplicity
Product Guide Fall 1998 published by Simplicity
Product Guide Spring 1999 published by Simplicity
Product Guide 2000 published by Simplicity
Product Guide Fall 2001 published by Simplicity
Operator's Manual Broadmoor published in 1998
Operator's Manual Broadmoor published in 2001
Service & Repair Manual Broadmoor Series (TP 500-2493-00-BM-SMA) published in 2001

Engine

Engine Detail — 569 cc / 34.75 ci Gasoline

Manufacturer	Vanguard 350777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	569 cc 34.75 ci
Bore/Stroke	2.83x2.75 inches 72 x 70 mm
Power (gross)	18 hp 13.4 kW
Rated RPM	3400
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L

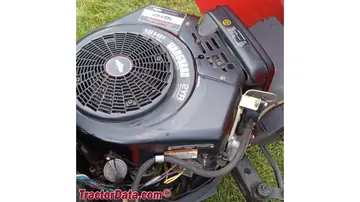

Simplicity Broadmoor 18H Engine
Image courtesy of Hunter Stewart

Transmission

Transmission — Tuff Torq K61

Transmission	Tuff Torq K61
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Broadmoor 18H Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	20x8.0-8

Dimensions
Wheelbase	50.75 inches 128 cm
Length	70.25 inches 178 cm
Width	35 inches 88 cm
Height (steering wheel)	40 inches 101 cm
Height (hood)	34 inches 86 cm
Weight	424 lbs*Weight of tractor only. 192 kg

Attachments

Attachment overview
50" mid-mount mower deck
Snowblower
Blade

50" Mower deck
Type	mid-mount Simplicity
	3-blade with manual lift
Cutting width	50 inches 127 cm
Overall width	62 inches 157 cm
Cut height	1.0 to 3.6 inch 2 to 9 cm

Photos

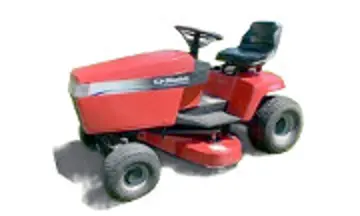

Simplicity Broadmoor 18H
