Simplicity CFC 18

The Simplicity CFC 18 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 691 cc 42.18 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Eaton 700. Drive type: 3x1 2WD. Operating weight: 690 lbs 312 kg.

Overview

	1990 - 1994 CFC SeriesFront-mount mower CFC Series Front-mount mower

Production
Manufacturer	Simplicity
Front-mount mower
Original price was $5,060 in 1991

Variants
CFC 18	steering wheel
CFC 18L	lever steer

Simplicity CFC 18 Engine
18HP Kohler 691cc 2-cyl gasoline
Fuel tank	4 gal (early) 15.1 L
	5.7 gal (late) 21.6 L
Engine details ...

Simplicity CFC 18 Transmission
hydrostatic
Transmission details ...

Mechanical
Drive	3x1 2WD
Power steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Front PTO	independent
Clutch	mechanical ilder pulley

Dimensions & Tires
Weight	690 lbs 312 kg
Front tire	18x9.50-8
Rear tire	13x5.00-6
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	340
Battery volts	12

References
The Professional Line published in 1989, by Simplicity
1991 Pocket Price List published in 1990, by Simplicity
1993 Price List published in 1992, by Simplicity

Engine

Engine Detail — 691 cc / 42.18 ci Gasoline

Manufacturer	Kohler M18
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft
Displacement	691 cc 42.18 ci
Bore/Stroke	3.12x2.75 inches 79 x 70 mm
Power (gross)	18 hp 13.4 kW
Air cleaner	paper element with foam pre-cleaner
Starter	electric
Starter volts	12
Oil capacity	1.75 qts 1.7 L
Oil change	50 h

Transmission

Transmission — Eaton 700

Transmission	Eaton 700
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity CFC 18 Tires
Lawn/turf front	18x9.50-8
Lawn/turf rear	13x5.00-6

Dimensions
Length	72 inches 182 cm
Width	49 inches 124 cm
Height (steering wheel)	41 inches 104 cm
Weight	690 lbs 312 kg
Front axle	1.125 inch diameter 28 mm

Attachments

Attachment overview
46" front-mount mower deck
54" front-mount mower deck
60" front-mount mower deck

Photos

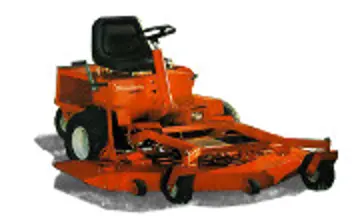

Simplicity CFC 18 tractor photo
