Simplicity Landlord 18

The Simplicity Landlord 18 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 622 cc 38 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Tuff Torq K215-A. Operating weight: 670 lbs 303 kg.

Overview

	1992 - 1998 Landlord SeriesGarden tractor Landlord Series Garden tractor

Production
Manufacturer	Simplicity
Garden tractor
Built in Port Washington, Wisconsin, USA
Original price	$5,500 (1993 )
	$5,600 (1994 )
	$5,800 (1996 )
	$5,950 (1997 )

Variants
1718	similar AGCO model
2718H	similar Massey Ferguson model

Simplicity Landlord 18 Engine
18HP Vanguard 622cc 2-cyl gasoline
Fuel tank	4 gal (early) 15.1 L
	5 gal (late) 18.9 L
Engine details ...

Simplicity Landlord 18 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electro-magnetic
Mid PTO Type	pulley

Dimensions & Tires
Wheelbase	51.5 inches 130 cm
Weight	670 lbs 303 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	15
Battery CCA	340
Battery volts	12

References
Tractors & Riding Mowers published in 1994, by Simplicity
Tractors & Riding Mowers published in 1995, by Simplicity
Tractors & Riding Mowers published in 1996, by Simplicity
Lawn & Garden Equipment published in 1998, by Simplicity
1993 Price List published in 1992, by Simplicity
1994 Price List published in 1993, by Simplicity
1996 Dealer Prduct Guide published by Simplicity
1997 Spring Product Guide published in 1996, by Simplicity

Engine

Engine Detail — 622 cc / 38 ci Gasoline

Manufacturer	Vanguard 350777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft V-Twin
Displacement	622 cc 38 ci
Bore/Stroke	3.03x2.64 inches 77 x 67 mm
Power (gross)	18 hp 13.4 kW
Starter	electric
Starter volts	12

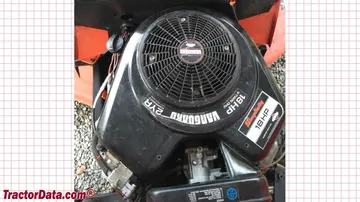

Simplicity Landlord 18 Engine
Image courtesy of Pender Small Engine

Transmission

Transmission — Tuff Torq K215-A

Transmission	Tuff Torq K215-A
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	2.8 qts 2.6 L

Dimensions

Simplicity Landlord 18 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	51.5 inches 130 cm
Length	72 inches 182 cm
Width	39 inches 99 cm
Height (steering wheel)	42.5 inches 107 cm
Height (hood)	36 inches 91 cm
Shipping weight	670 lbs 303 kg

Attachments

Attachment overview
44" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

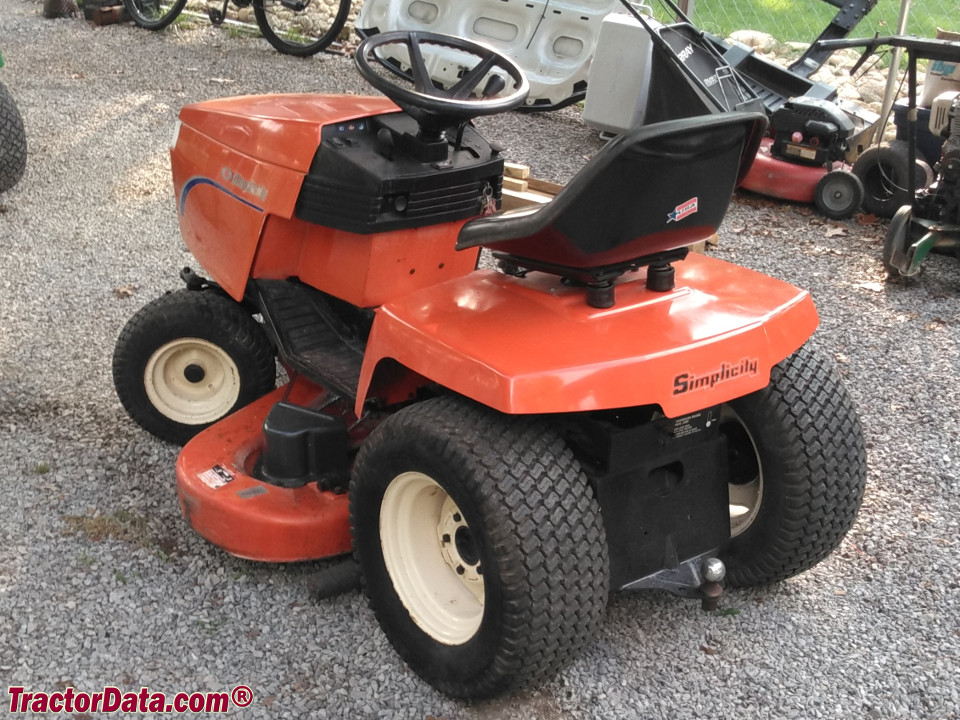

Simplicity Landlord 18

Simplicity Landlord 18

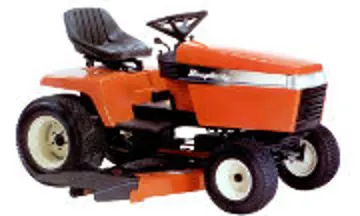

Simplicity Landlord 18
