Simplicity Regent 18/38

The Simplicity Regent 18/38 is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 534 cc 32.6 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Tuff Torq K46. Operating weight: 100 lbs 45 kg.

Overview

	2006 - 2009 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Lawn tractor
Original price was $2,250 in 2009

Variants
2518H	similar Massey Ferguson model

Simplicity Regent 18/38 Engine
18HP Kohler 534cc 1-cyl gasoline
Fuel tank	3.5 gal 13.2 L
Engine details ...

Simplicity Regent 18/38 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	430 lbs 195 kg
Front tire	15x6-6
Rear tire	20x8-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	230
Battery volts	12

References
Product Guide 2008 published by Simplicity
Operator's Manual Regent / 500 / 2500 Series (1730215) published in 2006

Engine

Engine Detail — 534 cc / 32.6 ci Gasoline

Manufacturer	Kohler SV540
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	534 cc 32.6 ci
Bore/Stroke	3.50x3.38 inches 89 x 86 mm
Power (gross)	18 hp 13.4 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Tuff Torq K46

Transmission	Tuff Torq K46
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Regent 18/38 Tires
Lawn/turf front	15x6-6
Lawn/turf rear	20x8-8

Dimensions
Wheelbase	50 inches 127 cm
Length	71 inches 180 cm
Width	37 inches 93 cm
Height (steering wheel)	45 inches 114 cm
Weight	430 lbs 195 kg
Front axle	Cast-iron
Rear axle	0.75 inch diameter 19 mm

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Simplicity 1695129
	2-blade with manual lift
Cutting width	38 inches 96 cm
Weight	100 lbs 45 kg
Overall width	50 inches 127 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	infinite

Photos

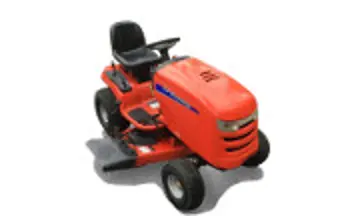

Simplicity Regent 18/38 tractor photo
