Simplicity Regent 18G

The Simplicity Regent 18G is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW. Transmission: Peerless MST 205. Operating weight: 445 lbs 201 kg.

Overview

	2005 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Lawn tractor

Simplicity Regent 18G Engine
18HP Briggs & Stratton 501cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Simplicity Regent 18G Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	445 lbs 201 kg
Front tire	15x6.0-6
Rear tire	18x8.5-8
Full dimensions and tires ...

References
The Way To A Beautiful Lawn published in 2005, by Simplicity

Engine

Engine Detail — 501 cc / 30.6 ci Gasoline

Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Briggs & Stratton Intek 31H777
Displacement	501 cc 30.6 ci
Bore/Stroke	3.57x3.06 inches 91 x 78 mm
Power (gross)	18 hp 13.4 kW
Rated RPM	3600
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless MST 205

Transmission	Peerless MST 205
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Simplicity Regent 18G Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	18x8.5-8

Dimensions
Wheelbase	50 inches 127 cm
Length	68 inches 172 cm
Width	36 inches 91 cm
Height (steering wheel)	41 inches 104 cm
Weight	445 lbs 201 kg

Attachments

Attachment overview
38" mid-mount mower deck
Snowblower
Blade

38" Mower deck
Type	mid-mount Simplicity
	2-blade with manual lift
Cutting width	38 inches 96 cm
Overall width	49.5 inches 125 cm
Cut height	1 to 3.9 inch 2 to 9 cm

Photos

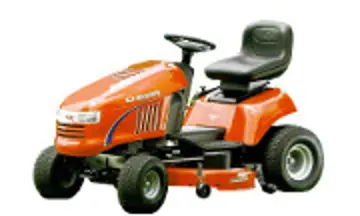

Simplicity Regent 18G tractor photo
