Simplicity Regent 18H

The Simplicity Regent 18H is a tractor produced by Simplicity Lawn Tractors. It is equipped with a 490 cc 29.9 ci engine. The listed engine power is Gasoline (gross): 18 hp / 13.4 kW; Gasoline (gross): 18 hp / 13.4 kW. Transmission: Tuff Torq K46. Operating weight: 445 lbs 201 kg.

Overview

	2005 Regent SeriesLawn tractor Regent Series Lawn tractor

Production
Manufacturer	Simplicity (a part of Briggs & Stratton)
Lawn tractor

Simplicity Regent 18H Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	50 inches 127 cm
Weight	445 lbs 201 kg
Front tire	15x6.0-6
Rear tire	18x8.5-8
Full dimensions and tires ...

References
The Way To A Beautiful Lawn published in 2005, by Simplicity

Engine

Engine options
18HP Briggs & Stratton 501cc 1-cyl gasoline
18HP Kohler 490cc 1-cyl gasoline

Engine Detail — 501 cc / 30.6 ci Gasoline

Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Briggs & Stratton Intek 31H777
Displacement	501 cc 30.6 ci
Bore/Stroke	3.57x3.06 inches 91 x 78 mm
Power (gross)	18 hp 13.4 kW
Rated RPM	3600
Starter	electric
Starter volts	12

Engine Detail — 490 cc / 29.9 ci Gasoline

Manufacturer	Kohler Command CV492S
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	490 cc 29.9 ci
Bore/Stroke	3.54x3.0 inches 90 x 76 mm
Power (gross)	18 hp 13.4 kW
Rated RPM	3600
Starter	electric
Starter volts	12

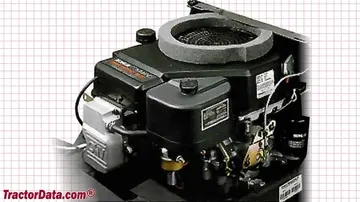

Simplicity Regent 18H Engine

Transmission

Transmission — Tuff Torq K46

Transmission	Tuff Torq K46
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Simplicity Regent 18H Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	18x8.5-8

Dimensions
Wheelbase	50 inches 127 cm
Length	68 inches 172 cm
Width	36 inches 91 cm
Height (steering wheel)	41 inches 104 cm
Weight	445 lbs 201 kg

Attachments

Attachment overview
38" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade

Photos

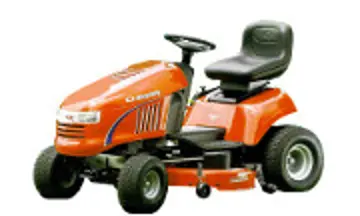

Simplicity Regent 18H tractor photo
