Twin City 60-90
The Twin City 60-90 is a tractor produced by Twin City. It is equipped with a 2229 ci 36.5 L engine. The listed engine power is Kerosene (listed): 110 hp / 82.0 kW. Transmission: 1 forward and reverse. Operating weight: 27100 lbs 12292 kg.
Engine Power
Kerosene (listed): 110 hp / 82.0 kW
Fuel & Capacities
86 gal
325.5 L
Transmission
1 forward and reverse
Operating Weight
27100 lbs
12292 kg
Overview
 | 1916 - 1918
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Twin City |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Total built | 20 |
Original price was $4,200 in 1925 | |
Twin City 60-90 Engine | |
|---|---|
Twin City 36.5L 6-cyl kerosene | |
Fuel tank | 86 gal
325.5 L |
Engine details ...  | |
Twin City 60-90 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Twin City 60-90 Power | |
|---|---|
Engine | 110 hp
82.0 kW |
Drawbar (claimed) | 60 hp
44.7 kW |
Belt (claimed) | 90 hp
67.1 kW |
Plows | 12 (14-inch) |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station with canopy. |
Dimensions & Tires | |
|---|---|
Weight | 27100 lbs
12292 kg |
Front tire | 42x12 |
Rear tire | 84x30 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Twin City Kerosene Tractors published in 1918, by Minneapolis Steel and Machinery |

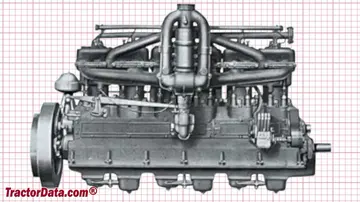

Engine
Engine Detail — 2229 ci / 36.5 L Kerosene
Manufacturer | Twin City |
Fuel Type | Kerosene |
Configuration | 6-cylinder, liquid-cooled inline |
Displacement | 2229 ci
36.5 L |
Bore/Stroke | 7.25x9.00 inches
184 x 229 mm |
Power | 110 hp
82.0 kW |
Rated RPM | 500 |
Coolant capacity | 480 qts
454.3 L |
Twin City 60-90 Engine | |
|---|---|
 |
Transmission
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
Dimensions
Twin City 60-90 Tires | |
|---|---|
Ag front | 42x12 (steel) |
Ag rear | 84x30 (steel) |
Dimensions | |
|---|---|
Length | 262.5 inches
666 cm |
Width | 110.5 inches
280 cm |
Height | 122 inches
309 cm |
Weight | 27100 lbs
12292 kg |
Photos

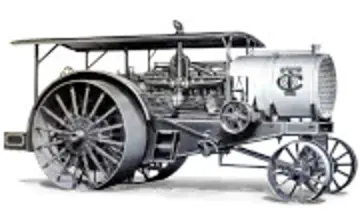

Twin City 60-90 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Twin City 60-90 based on its 110 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Twin City 60-90.
Estimated Continuous Field Runtime: 15 hrs
Approximately 15 hours of continuous field operation at ~75% rated power on a full tank (86 gal / 325.5 L).
Estimated 75% Load Fuel Burn~5.7 gal/hr (21.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Twin City 60-90 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Twin City 60-90.
Converted Equivalents:
Horsepower (HP)110 hp
Kilowatts (kW)82 kW
Metric Horsepower (PS / CV)111.5 PS
