John Deere D100
The John Deere D100 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 501 cc 30.6 ci engine. The listed engine power is Gasoline (gross): 17.5 hp / 13.0 kW. Transmission: Dana 4360. Operating weight: 442 lbs 200 kg.
Engine Power
Gasoline (gross): 17.5 hp / 13.0 kW
Fuel & Capacities
2.1 gal
7.9 L
Transmission
Dana 4360
Operating Weight
442 lbs
200 kg
Overview
 | 2011 - 2012
D100 SeriesLawn tractor
D100 Series
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Lawn tractor | |
Built in Greeneville, Tennessee, USA | |
Original price was $1,499 in 2011 | |
John Deere D100 Engine | |
|---|---|
17.5HP Briggs & Stratton 501cc 1-cyl gasoline | |
Fuel tank | 2.1 gal
7.9 L |
2.4 gal (California model)
9.1 L | |
Engine details ...  | |
John Deere D100 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical disc on transaxle brakes | |
Open operator station. Adjustable 11-inch tall seat with 5.5-inches of travel in ten positions. Fender-mounted cup holder. Optional nylon sunshade canopy or snow enclosure. |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 48.9 inches
124 cm |
Weight | 442 lbs
200 kg |
Front tire | 15x6.00-6 |
Rear tire | 20x8.0-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 9 |
Battery volts | 12 |
Battery Group | U1 |
References | |
|---|---|
 | |
Operator's Manual D100 Series (OMGX24147) published in 2011 | |
Operator's Manual D100 Series (OMGX24230) published in 2012 |
Engine
Engine Detail — 501 cc / 30.6 ci Gasoline
Manufacturer | Briggs & Stratton 31 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 501 cc
30.6 ci |
Bore/Stroke | 3.57x3.06 inches
91 x 78 mm |
Power (gross) | 17.5 hp
13.0 kW |
Air cleaner | cartridge |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.5 qts
1.4 L |
Transmission
Transmission — Dana 4360
Transmission | Dana 4360 |
Type | belt-driven gear |
Gears | 5 forward and 1 reverse |
Right-hand shift lever with integrated clutch/brake pedal. | |
 | |
Dimensions
John Deere D100 Tires | |
|---|---|
Lawn/turf front | 15x6.00-6 |
Lawn/turf rear | 20x8.0-8 |
Dimensions | |
|---|---|
Wheelbase | 48.9 inches
124 cm |
Length | 68.75 inches
174 cm |
Width | 51.75 inches (mower)
131 cm |
Height | 42.5 inches
107 cm |
Weight | 442 lbs
200 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount John Deere Edge 42 |
2-blade with manual with spring-assist lift | |
Cutting width | 42 inches
106 cm |
Overall width | 52 inches
132 cm |
Cut height | 1 to 4 inch
2 to 10 cm |
Cut positions | 13 |
Photos

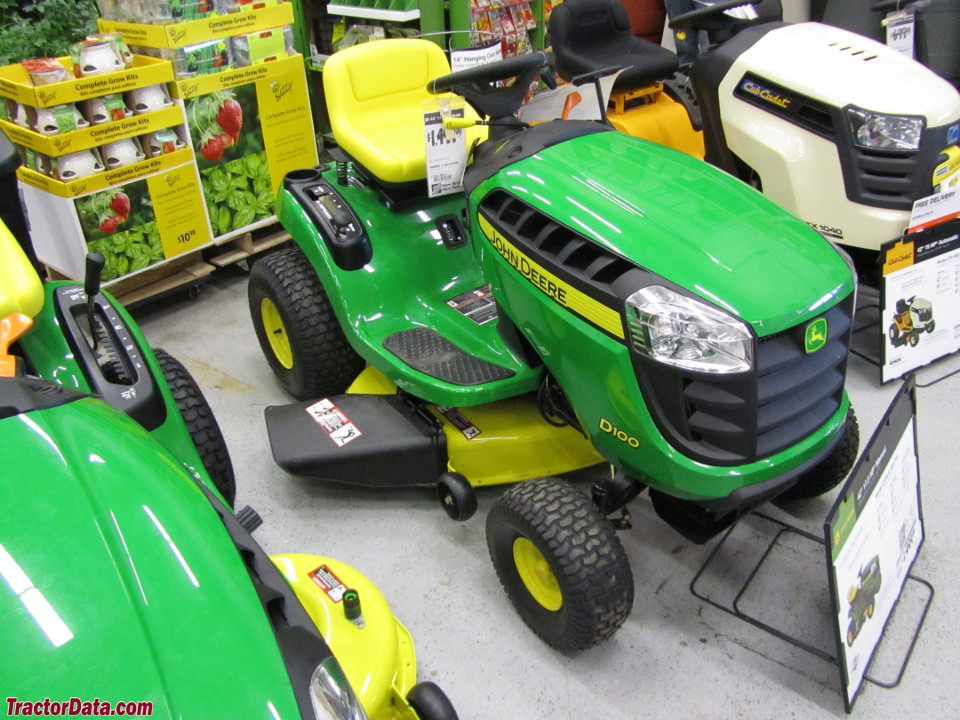

John Deere D100

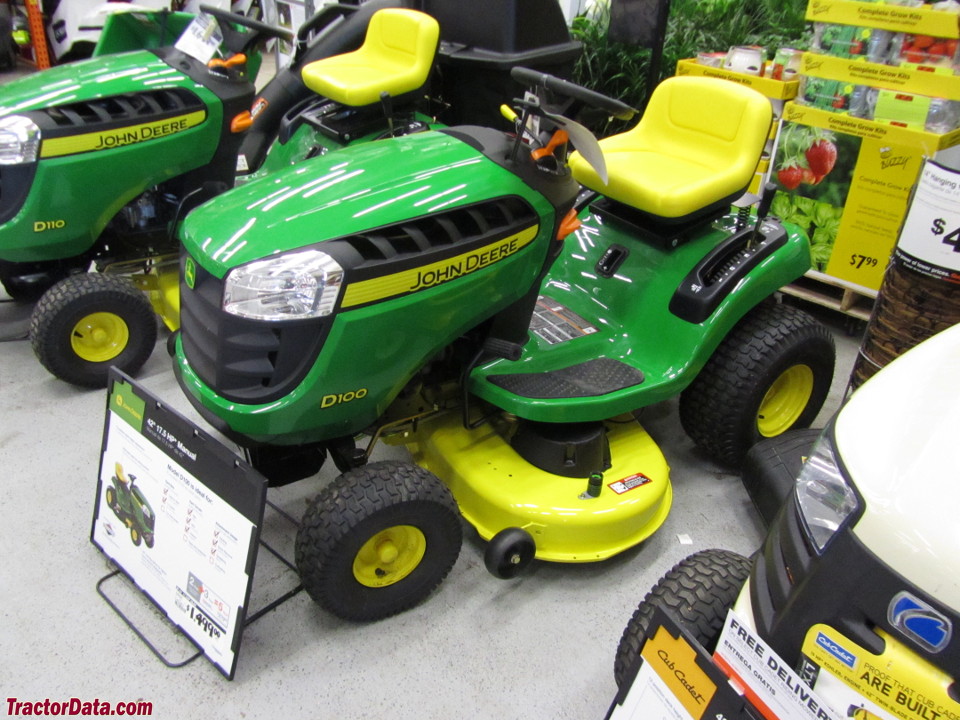

John Deere D100

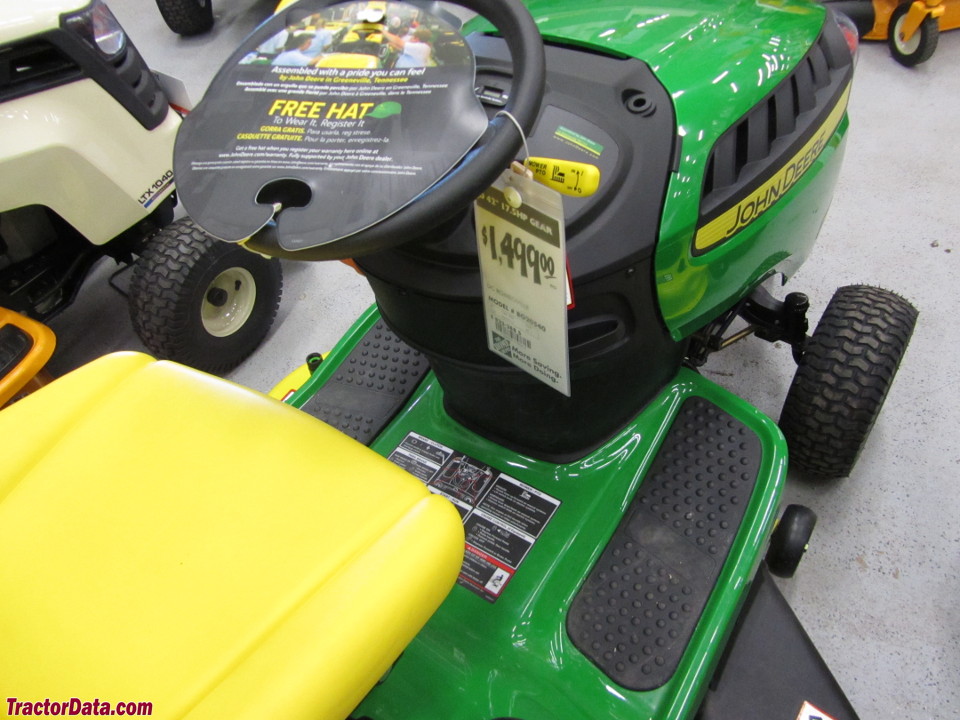

John Deere D100 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere D100 based on its 17.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere D100.
Estimated Continuous Field Runtime: 2.3 hrs
Approximately 2.3 hours of continuous field operation at ~75% rated power on a full tank (2.1 gal / 7.9 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere D100 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere D100.
Converted Equivalents:
Horsepower (HP)17.5 hp
Kilowatts (kW)13 kW
Metric Horsepower (PS / CV)17.7 PS
