John Deere F710
The John Deere F710 is a tractor produced by John Deere Lawn Tractors. It is equipped with a 534 cc 32.6 ci engine. The listed engine power is Gasoline (listed): 17.5 hp / 13.0 kW. Transmission: Sundstrand. Operating weight: 1078 lbs 488 kg.
Engine Power
Gasoline (listed): 17.5 hp / 13.0 kW
Fuel & Capacities
7 gal
26.5 L
Transmission
Sundstrand
Operating Weight
1078 lbs
488 kg
Overview
 | 1991 - 1997
F700 SeriesFront-mount mower
F700 Series
Front-mount mower |
|---|
Production | |
|---|---|
Manufacturer | John Deere |
Front-mount mower | |
Built in Horicon, Wisconsin, USA | |
John Deere F710 Engine | |
|---|---|
17.5HP Kawasaki 534cc 1-cyl gasoline | |
Fuel tank | 7 gal
26.5 L |
Engine details ...  | |
John Deere F710 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Differential lock | mechanical front |
Power steering | |
Drum brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Dimensions & Tires | |
|---|---|
Wheelbase | 39.4 inches
100 cm |
Weight | 1078 lbs
488 kg |
Front tire | 20x10.00-8 |
Rear tire | 15x6.00-6 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 15 |
Battery volts | 12 |
References | |
|---|---|
 | |
F700 Series Front Mowers published in 1993, by John Deere* | |
Operator's Manual F710 and F725 Front Mowers (OMM120581) | |
F710 & F725 Front Mowers published by John Deere | |
Commercial Front Mowers published in 1996, by John Deere | |
Commercial Front Mowers published in 1997, by John Deere | |
Lawn & Grounds Care Sales Manual published in 1997, by John Deere* | |
Golf & Turf Equipment Purchasing Guide published in 1993, by John Deere | |
*Publication contains known errors. |
Engine

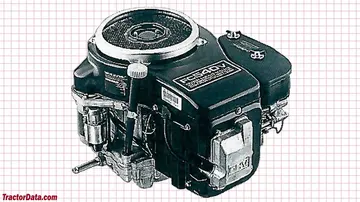

Engine Detail — 534 cc / 32.6 ci Gasoline
Manufacturer | Kawasaki FC540V |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 534 cc
32.6 ci |
Bore/Stroke | 3.50x3.38 inches
89 x 86 mm |
Power | 17.5 hp
13.0 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.7 qts
1.6 L |
John Deere F710 Engine | |
|---|---|
 |
Transmission
Transmission — Sundstrand
Transmission | Sundstrand |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
John Deere F710 Tires | |
|---|---|
Lawn/turf front | 20x10.00-8 |
Lawn/turf rear | 15x6.00-6 |
Dimensions | |
|---|---|
Wheelbase | 39.4 inches
100 cm |
Length | 981 inches (without deck)
2491 cm |
98.75 inches (with deck)
250 cm | |
Height | 47.6 inches
120 cm |
Weight | 1078 lbs
488 kg |
Attachments
Attachment overview | |
|---|---|
48" front-mount mower deck | |
Snowblower | |
A 9-bushel material collection system was available with a blower powered by a belt off the deck. |
48" Mower deck | |
|---|---|
Type | front-mount John Deere |
3-blade with hydraulic lift | |
Cutting width | 48 inches
121 cm |
Overall width | 51.8 inches
131 cm |
Photos
John Deere F710 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for John Deere Lawn Tractors John Deere F710 based on its 17.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere Lawn Tractors John Deere F710.
Estimated Continuous Field Runtime: 7.7 hrs
Approximately 7.7 hours of continuous field operation at ~75% rated power on a full tank (7 gal / 26.5 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.4 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
John Deere Lawn Tractors John Deere F710 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for John Deere Lawn Tractors John Deere F710.
Converted Equivalents:
Horsepower (HP)17.5 hp
Kilowatts (kW)13 kW
Metric Horsepower (PS / CV)17.7 PS
Direct Competitor Comparison
Compare John Deere F710 against same-era industry alternatives in the same horsepower class.
Current Model
John Deere Lawn Tractors
John Deere F710
Engine Power:Gasoline (listed): 17.5 hp / 13.0 kW
★ Baseline Reference
