Kubota PX-2100

The Kubota PX-2100 is a tractor produced by Kubota Lawn Tractors. It is equipped with a 927 cc 56.6 ci engine. The listed engine power is Diesel (gross): 20 hp / 14.9 kW. Transmission: infinite forward and reverse. Drive type: 4x4 4WD. Operating weight: 1543 lbs*Weight with 60-inch mower deck. 699 kg.

Engine Power
Diesel (gross): 20 hp / 14.9 kW
Drive & Traction
4x4 4WD
Fuel & Capacities
Diesel
Transmission
infinite forward and reverse
Operating Weight
1543 lbs*Weight with 60-inch mower deck. 699 kg

Overview

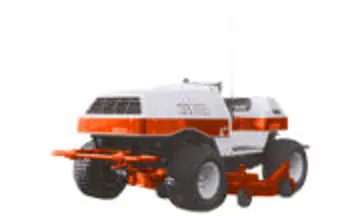

Kubota PX-2100 tractor photo
1987 - 1995 Lawn tractor
Production
Manufacturer
Kubota
Lawn tractor
Original price was $22,000 in 1987
The Kubota PX-2100 was capable of remote-control (RC) or driven operation. The remote control was advertised with a 100 meter range and automatic safety shutdown that would stop the PX-2100 and disengage the mower if control signal was lost.
Kubota PX-2100 Engine
20HP Kubota 927cc 3-cyl diesel
Engine details ...
Kubota PX-2100 Transmission
hydrostatic
Transmission details ...
Mechanical
Drive
4x4 4WD
Differential lock
automatic locking
Steering
four-wheel steering
Open operator station. 49MHz FM remote-control
Dimensions & Tires
Weight
1543 lbs 699 kg
Front tire
21x11.00-10
Rear tire
21x11.00-10
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
PX-2100 references literature
Radio-Controlled Mower PX-2100 published by Kubota

Engine

Engine Detail — 927 cc / 56.6 ci Diesel

Manufacturer
Kubota
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
927 cc 56.6 ci
Bore/Stroke
3.00x2.80 inches 76 x 71 mm
Power (gross)
20 hp 14.9 kW
Rated RPM
2600
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
PX-2100  hydrostatic speeds

Dimensions

Kubota PX-2100 Tires
Lawn/turf front
21x11.00-10
Lawn/turf rear
21x11.00-10
Dimensions
Length
100 inches 254 cm
Width
72 inches 182 cm
Height
42 inches 106 cm
Weight
1543 lbs*Weight with 60-inch mower deck. 699 kg

Attachments

60" Mower deck
Type
mid-mount Kubota RC60-X21
3-blade
Cutting width
60 inches 152 cm
Cut height
1.5 to 4 inch 3 to 10 cm

Photos

Kubota PX-2100 RC Mower sales image.

Kubota PX-2100 RC Mower sales image.

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota PX-2100 based on its 20 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota PX-2100.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota PX-2100 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota PX-2100.

Converted Equivalents:

Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS

Direct Competitor Comparison

Compare Kubota PX-2100 against same-era industry alternatives in the same horsepower class.

Current Model
Kubota Lawn Tractors

Kubota PX-2100

Engine Power:Diesel (gross): 20 hp / 14.9 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 1215

Engine Power:18
Production Years:1996 - 2003
International HarvesterMarket Competitor

International Harvester 184 Lo-Boy

Engine Power:18
Production Years:1977 - 1980
CaseIHMarket Competitor

CaseIH 235

Engine Power:18
Production Years:1986 - 1990
KubotaMarket Competitor

Kubota B7410

Engine Power:18
Production Years:2004 - 2007
