Kubota T2090BR

The Kubota T2090BR is a tractor produced by Kubota Lawn Tractors. It is equipped with a 655 cc 40 ci engine. The listed engine power is Gasoline (gross): 20 hp / 14.9 kW. Transmission: Hydro-Gear T3HD. Operating weight: 250 lbs 113 kg.

Engine Power
Gasoline (gross): 20 hp / 14.9 kW
Fuel & Capacities
3.6 gal 13.6 L
Transmission
Hydro-Gear T3HD
Operating Weight
250 lbs 113 kg

Overview

Kubota T2090BR tractor photo
2018 T90 SeriesLawn tractor T90 Series Lawn tractor
Production
Manufacturer
Kubota
Lawn tractor
Original price was $3,889 in 2019
Kubota T2090BR Engine
20HP Briggs & Stratton 655cc 2-cyl gasoline
Fuel tank
3.6 gal 13.6 L
Engine details ...
Kubota T2090BR Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
51 inches 129 cm
Weight
595 lbs 269 kg
Front tire
15x6.0-8
Rear tire
20x10.0-10
Full dimensions and tires ...
Electrical
Ground
negative
Charging amps
16
Battery CCA
300
Battery volts
12
References
T2090BR references literature
T Series published in 2017, by Kubota

Engine

Engine Detail — 655 cc / 40 ci Gasoline

Manufacturer
Briggs & Stratton
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft V-Twin
Displacement
655 cc 40 ci
Bore/Stroke
2.970x2.890 inches 75 x 73 mm
Power (gross)
20 hp 14.9 kW
Air cleaner
dual dry element
Starter
electric
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Transmission — Hydro-Gear T3HD

Transmission
Hydro-Gear T3HD
Type
belt-driven hydrostatic
Gears
infinite forward and reverse
T2090BR T3HD belt-driven hydrostatic speeds

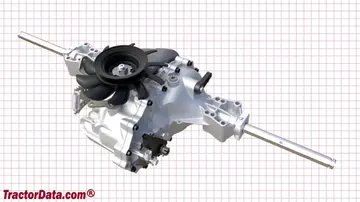

Kubota T2090BR Transmission
Kubota T2090BR transmission image

Dimensions

Kubota T2090BR Tires
Lawn/turf front
15x6.0-8
Lawn/turf rear
20x10.0-10
Dimensions
Wheelbase
51 inches 129 cm
Length
74.8 inches 189 cm
Width
39.8 inches 101 cm
Height (steering wheel)
51.4 inches 130 cm
Weight
595 lbs*Weight with mower deck. 269 kg
Ground clearance
5.5 inches 13 cm
Front tread
32.1 inches 81 cm
Rear tread
29.9 inches 75 cm

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
42" Mower deck
Type
mid-mount Kubota RCK42P-90T
2-blade with manual lift
Cutting width
42 inches 106 cm
Weight
250 lbs 113 kg
Overall width
54.8 inches 139 cm
Cut height
1 to 4 inch 2 to 10 cm

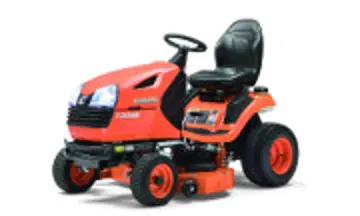

Photos

Kubota T2090BR tractor photo

Kubota T2090BR tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Kubota Lawn Tractors Kubota T2090BR based on its 20 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Kubota Lawn Tractors Kubota T2090BR.

Estimated Continuous Field Runtime: 3.5 hrs

Approximately 3.5 hours of continuous field operation at ~75% rated power on a full tank (3.6 gal / 13.6 L).

Estimated 75% Load Fuel Burn~1 gal/hr (3.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Kubota Lawn Tractors Kubota T2090BR Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Kubota Lawn Tractors Kubota T2090BR.

Converted Equivalents:

Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
